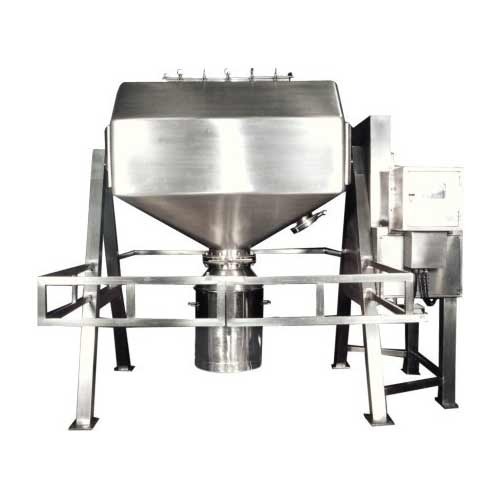

Pharmaceutical Powder Mixer Machine Octagonal Blender

Octagonal blender is designed to process larger volume of material. It occupies less space compared to other similar blenders like V and Double Cone. Power consumption is also less. The blending takes place at low speed during operation. It is well balanced even in higher capacities. It is very useful for pharmaceutical industries where in gentle of dry granules of powder are to be done. It is a slow sped blender and has removable type baffles mounted on a rectangular shell. The important feature of machine is easy to wash in place. Octagonal blender is supplied with a bin charging system or can be designed for vacuum charging. Dust free charging system is also incorporated, which is a completely closed system for charging and discharging of powders and granules. The power consumption is comparatively lower than other similar types of blenders. The machine basically consists of shell welded with conical Octagonal shape ends and supported with sturdy supporters on the both sides.

The right-hand side shaft is connected to a standard gearbox by means of chain and sprockets, which in turn coupled to an electric motor. The whole drive assembly is coupled with SS side panel. The inside panel portion of Octa body is mirror polished and the outside surface of the Octa body, frame & guards are matt polished. The material is to be mixed is charged in the machine either manually from top or bin discharging system or vacuum charging system and then the port is locked positively. Then blender is started to pre-set blending time. At the end of process, machine is stopped and the product is transferred to process containers by opening the butterfly valve.

small double cone mixer octagonal blender machine

Operation of Octagonal Blender Machine :

Octagonal blender machine manufacturing range : 10 kg., 25 kgs., 50 kgs., 100 kgs., 200 kgs., 300 kgs., 500 kgs.1000kgs, 2000 kegs, 3000 kegs, 5000 kegs and 10,000 kegs

Application & Process of Octagonal Blender Machine :

Our Blenders best suitable for Materials mixing and blending products , The octagonal shape blenders best suitable for Cosmetic products , Ceramics , Animal feed , Pain color , Pharmaceutical, API bulk drugs, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries.

Our Octagonal blender machine with latest updated designed with Highly efficient dry mixing of granular products with Capacity varies between 100 LTR and 20000 litres - mixing of free-flowing powders.

Stainless Steel Mass Mixer is Specially designed equipment for product uniformly mixing of dry and wet materials and Mass mixer especially industry demanded for Granules , powder of Ayurveda , Pharma, Food, Herbals, Agro Chemicals & pain powder and Chemicals.

Salient Features :

• Special Design is cGMP - Current Good Manufacturing Practices Compliance..
• All Product contact parts stainless steel 316 or 316L & non contact parts Stainless Steel AISI 304.
• Octagonal shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch.
• Capacity model in octagonal blender 5 kg to 10,000 kg batch size.
• Strong and rigid drive with reduction gear box and motor.
• "A" type rigid structure of the machine with two sides resting of product container.
• Blender with Product container discharge with butterfly valve and man hole.
• Powder Charging hole with lid with seal for charging and cleaning.
• Safety reeling optionally provided for rotating area of blender cone or product container.
• Blender with baffles provided for lumps braking.
• Operating Electric controls panel with cycle time.

Optional Features :

• Charging Option:
• Product materials Loading & Unloading by Product container with trolley.
• Products Vacuum conveying transfer system.
• IPC / Bin loading.
• Variable speed for product container by VFD.
• Optionally PLC Controls with HMI touch screen,
• Flame-proof motor and Push Button station.
• Optionally - Inline milling and loading with vacuum powder transfer systems.
• Powder Vacuum loading facility for material charging.
• Dust free closed system in Bin charging
• Option of 21cfr part 11 compliance control system
• Slow speed Blender with Gentle blending of Dry granules and powder
• Zero Jerk Load as machine is both dynamic and statically balanced
• Pneumatically actuated valves for dust free transfers
• Bins with Level sensory for automatic cut off
• Mechanical Seals on shafts for Pneumatic connections
• Validation Document – DQ , IQ , PQ , OQ and manual provide on additional extra cost.

Manufacturing for powder processing industries specially designing as per WHO, GMP, USFDA (U.S. Food and Drug Administration ), MHRA – (Medicines and Healthcare products Regulatory Agency ) , TGA (Therapeutic Goods Administration  ) and GMP norms and requirements., specialized in Mixers, Blenders and Dryers mainly for Pharmaceuticals, API, Bulk Drugs & Intermediates, Food Processing, Cosmetics and Chemical process industries, Pharmaceutical Formulation and Bulk drugs ,Eg. Sustain Release, Enteric Release Coating on tablets , Organic and Inorganic chemicals , Agrochemicals and fertilizers , Nutraceuticals’ and Biotech Products, Speciality chemicals , R & D Institutes and colleges etc.

Safety Features :

• Machine Safety reeling with limit switch.
• Overload power protection and emergency stop.

We offer many different model and customer is find with different name like octagonal blender, pharmaceutical octagonal blender, industrial octagonal blender, steel octagonal blender, stainless steel octagonal blender, pharma octagonal blender, automatic octagonal blender, STD octagonal blender, GMP octagonal blender, chemical octagonal blender, octagonal blender, pharmaceutical octagonal blender, octagonal blender manufacturer, pharmaceutical octagonal blender supplier, octagonal blender manufacturers, pharmaceutical octagonal blender manufacturer, octagonal blender exporter, pharmaceutical octagonal blender manufacturers, octagonal blender exporters, pharmaceutical octagonal blender exporter, octagonal blender supplier, pharmaceutical octagonal blender exporters, octagonal blender suppliers, pharmaceutical octagonal blender suppliers, octagonal blender wholesale, pharmaceutical octagonal blender wholesale, wholesale octagonal blender, wholesale pharmaceutical octagonal blender.

Technical Specification :
